Meat Scoring Machine

The Meat Scoring Machine is an industrial-grade equipment designed to create decorative patterns (e.g., cross-hatch, diamond, or grid lines) on the surface of fresh or frozen meats (e.g., beef, pork, chicken, squid, and offal) to enhance flavor absorption, aesthetic appeal, or texture. Utilizing advanced blade systems and adjustable mechanisms, this machine streamlines the scoring process, ensuring uniformity and efficiency in high-volume food processing settings. Built with ​304 stainless steel and compliant with food safety standards, it is ideal for meat processing plants, catering industries, and commercial kitchens.

  1. ​Pattern Cutting & Depth Adjustment: Creates (mesh patterns) or (cross-hatch) on meat surfaces (e.g., pork belly, squid) to improve marination efficiency or visual presentation.
  2. ​One-Pass Cutting & High Efficiency: Processes meats in ​single pass without the need for reorientation, e.g., cutting (squid flowers) or (pork kidney patterns) in one go.
  3. Intelligent & User-Friendly: Equipped with ​programmable speed and ​blade replacement systems，allowing quick adjustments for different meat types and requirements.

Meat Scoring Machine Application

Crisp cookies biscuit machine Application

Meat Scoring Machine Advantages

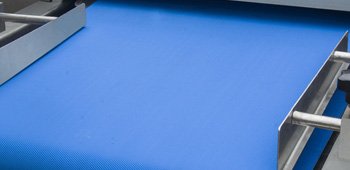

Anti stick conveyor belt

The conveyor adopts a wave type conveyor belt, which is smooth and easy to clean. The discharge does not stick to the meat, and it fits perfectly with the cutting edge, with a long service life.

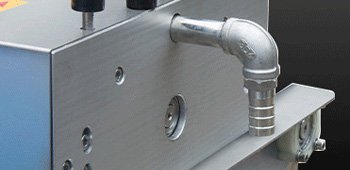

Water inlet

Connect the water outlet and spray water during the cutting process to prevent the knife from sticking to the meat for smoother cutting.

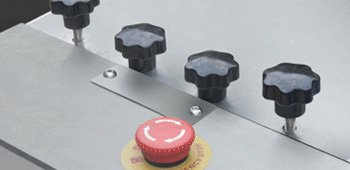

The cutting depth can be fine tuned

By rotating the screw, the depth of cutting can be adjusted to achieve the desired effect.

Mobile wheels

Equipped with support pillars and movable wheels, it is convenient for operators to move the machine. It can be fixed during use and works quietly.

Meat Scoring Machine VIDEO

Meat Scoring Machine PARAMETERS

13 Meat Scoring Machine

Voltage 380v
Power 0.75kw
Cut flower size 3.5mm *5.5mm *45°
Maximum cutting speed 258mm/sec
Belt width 400mm
Cutting depth 9mm
Cutting reserve thickness 0.5~3mm (adjustable)
Product size 1520*520*1000mm
Product weight ≈90kg
